Architecturally Exposed Structural Steel (AESS) is a remarkable element that stands out for its ability to seamlessly marry aesthetics and structural integrity. AESS isn’t just another construction material; it’s a medium architects and engineers use to transform their visions into inspiring structures that leave a lasting imprint on the urban landscape.
Photo: © Hayes Davidson
At its core, AESS is a testament to the harmonious coexistence of artistry and engineering precision. In this blog post, we will explore the significance of Architecturally Exposed Structural Steel and its role in structure design.
Architects and engineers collaborate to weave a tale of creativity and functionality, where steel emerges as a backbone and a visual narrative. From soaring skyscrapers reaching for the sky, bridges defying gravity, and beautiful interior designs, AESS emerges as a silent protagonist, bearing the weight of innovation and design ingenuity.
Importance of Architecturally Exposed Structural Steel
Its importance extends far beyond being a mere structural component; rather, it represents a conscious choice made by architects and designers to infuse character and visual depth into their creations.
Source: www.instagram.com/structuralsteelaesthetic/
Its raw, industrial beauty, often left uncovered or strategically enhanced, becomes an integral part of a building’s exterior or interior design. The interplay of light and shadow on steel surfaces, the sparkle of a precisely welded joint, and the captivating contrast of textures contribute to an ambiance that captures attention and stirs emotion.
While AESS significantly contributes to the aesthetics of a structure, its role in maintaining structural harmony cannot be overlooked. AESS’s ability to support heavy loads, withstand seismic forces, and span great distances while retaining its elegance underscores its multifaceted nature.
Photo: © Fonds J. Kalisz
One of the compelling reasons architects gravitate toward AESS is its unparalleled design flexibility. Unlike traditional materials that might limit the shapes and forms that can be achieved, steel can be fabricated into intricate geometries and complex configurations. This versatility enables architects to realize their boldest and most imaginative visions, shaping architectural landscapes with unprecedented freedom.
Structures featuring AESS often become icons of innovation. They represent a departure from convention, a commitment to pushing the boundaries of what is possible. AESS-bearing buildings and bridges become symbols of a society’s progress, echoing the spirit of creativity and advancement that define our era.
Some of the world’s most recognizable landmarks owe their distinctiveness to AESS. The Sydney Opera House’s expressive steel shells, the Eiffel Tower’s intricate lattice, and the Walt Disney Concert Hall’s undulating forms testify to AESS’s transformative power in creating architectural icons that define skylines and cityscapes.
Design Considerations
The choice of steel type and grade is pivotal in achieving the desired aesthetic and structural outcomes. Factors such as durability, corrosion resistance, and weathering properties play a crucial role, especially when AESS is exposed to the elements. Collaborations between architects, structural engineers, and material experts are essential to determine the most suitable steel for the project’s context and design intent.
Photo: Adrien Olichon
AESS projects often hinge on the precision of connection details. Seamless connections, whether achieved through welding or bolting, contribute to the overall aesthetic appeal by maintaining clean lines and eliminating visual clutter. The challenge lies in ensuring these connections align with the design’s intent while upholding structural integrity and safety standards.
A core principle of AESS is the integration of form and function. The design process involves envisioning how the steel components interact with the surrounding architecture and the overall spatial experience and how the steel components influence the flow of spaces, natural light penetration, and views.
Source: www.instagram.com/structuralsteelaesthetic/
Communication is paramount when translating design intent into a tangible structure. Clear documentation, including detailed drawings, specifications, and mock-ups, helps bridge the gap between architects and fabricators, ensuring that the final product aligns with the envisioned aesthetics.
AESS Categories: Understanding the Classification System
One of the most important — yet often overlooked — aspects of working with Architecturally Exposed Structural Steel is the category system established by the American Institute of Steel Construction (AISC). The AESS category defines the level of finish, fabrication care, and visual quality required for a given steel element, based on how closely it will be viewed.
Selecting the right AESS category early in the design process is critical. It directly affects fabrication cost, lead time, surface preparation requirements, and coordination between the architect, structural engineer, and fabricator.

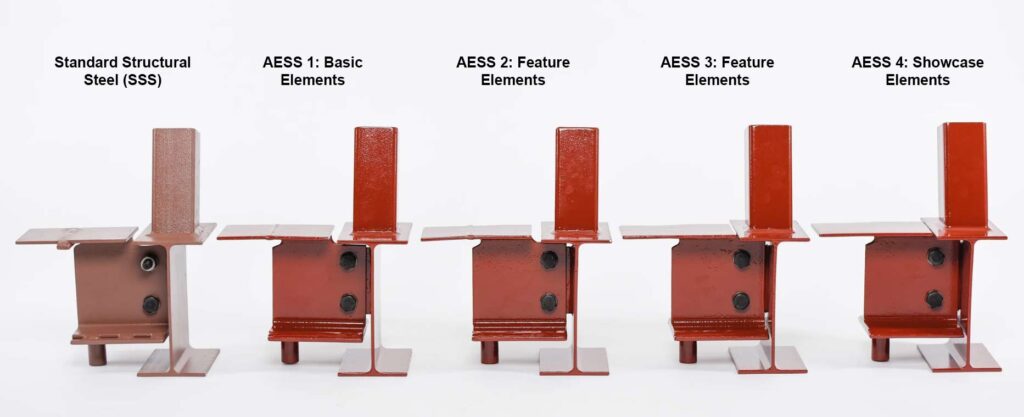

The Five AESS Categories
The AISC Code of Standard Practice defines five AESS categories. Each represents a progressively higher level of attention to visual quality:
| Category | Name | Viewing Distance | Key Requirement |
|---|---|---|---|
| AESS 1 | Basic Elements | > 20 ft (6 m) | Standard fabrication + better weld appearance |
| AESS 2 | Feature Elements | > 20 ft (6 m) | Half AISC straightness tolerance, no sharp edges |
| AESS 3 | Feature Elements | < 20 ft (6 m) | Mill marks & weld seams removed or oriented away |
| AESS 4 | Showcase Elements | Close inspection | Special surface/edge treatment, all welds ground flush |
| AESS C | Custom Category | Defined in contract | Requirements specified in project contract documents |
AESS 1 — Basic Elements
AESS 1 is the entry-level category and applies to structural steel elements that are visible but not subject to close scrutiny — typically viewed from more than 6 metres (20 feet) away. Fabrication follows standard AISC practices, but with greater care taken to produce a visually acceptable result. Sharp edges are removed and welds are cleaned up, but mill marks and minor surface imperfections are acceptable.
AESS 1 is commonly used for industrial buildings, warehouses, and exposed ceiling structures where the steel is part of the aesthetic but not a design centrepiece.
AESS 2 — Feature Elements (Distant View)
AESS 2 applies to feature elements also viewed from more than 6 metres. The key difference from AESS 1 is that straightness tolerances are tightened to half the standard AISC allowance. Fabricators must also eliminate sharp edges and produce consistently clean welds. This category is common in commercial lobbies, retail spaces, and long-span roof structures.
AESS 3 — Feature Elements (Close View)
AESS 3 is where fabrication precision becomes visually critical. Applied to elements viewed within 6 metres (20 feet), this category requires that mill marks — the identification numbers stamped into steel during production — are either removed or oriented away from public view. Weld seams on HSS (Hollow Structural Sections) must be oriented to face away from the line of sight. All welds are ground smooth and surface defects corrected.
AESS 3 is typical in museums, airports, high-end retail, and feature staircases where the steel is a primary design element at eye level.
AESS 4 — Showcase Elements
AESS 4 represents the highest standard of off-the-shelf AESS specification. Used for prominent showcase elements that will be closely inspected, it requires special surface and edge treatment, all welds ground completely flush, and any surface discontinuities filled and finished. This level of finish is labour-intensive and significantly more expensive than lower categories.
AESS 4 is reserved for signature architectural moments — a feature column in a luxury hotel lobby, an exposed transfer truss in a high-profile civic building, or any element that becomes a focal point of the design.
AESS C — Custom Category
AESS C is a flexible, project-specific category that allows architects and engineers to define custom requirements in the contract documents. It is used when none of the standard categories adequately capture the desired level of finish, or when special requirements exist — such as combining AESS with hot-dip galvanizing (see the Surface Finishes section).
When specifying AESS C, all requirements must be explicitly documented. This includes mock-up requirements, acceptable surface conditions, weld finish standards, and inspection criteria.
Visual Inspection, Viewing Distance & Mock-ups
The AESS category system is built around a fundamental concept: the acceptable level of surface imperfection depends on how close a viewer will be to the steel. This is called the viewing distance criterion, and it determines which category applies to each element.
Viewing Distance
Architects and engineers must establish the viewing distance for each exposed steel element during the design phase. As a general rule:
- Elements viewed from more than 6 metres (20 ft) → AESS 1 or AESS 2
- Elements viewed from within 6 metres (20 ft) → AESS 3 or AESS 4
- Elements subject to close or hands-on inspection → AESS 4 or AESS C
Getting this wrong is costly. Specifying AESS 4 for a ceiling beam visible only from 10 metres below adds significant fabrication cost with no visual benefit. Equally, specifying AESS 1 for a feature column at eye level will result in a visually disappointing outcome.
Mock-ups and Visual Samples
For AESS 3 and above, mock-ups are strongly recommended — and often required by the contract. A mock-up is a physical sample of the intended steel finish, produced by the fabricator and approved by the architect before full production begins. This prevents costly surprises when the steel arrives on site.
Visual samples can take several forms:
- Full-scale mock-ups of a connection or assembly
- Finish samples (small steel plates showing the surface treatment)
- 3D renderings or photographs of comparable built examples
- On-site test panels for coatings and paint
Who Is Responsible?
Clear responsibility assignment is essential in AESS projects. A common source of disputes is the assumption that fabricators will automatically produce architectural-quality finishes without explicit specification. The contract documents must clearly state:
- Which category applies to each element (or zone of the structure)
- Who approves mock-ups and visual samples (typically the architect of record)
- The inspection protocol — when, where, and by whom
- Whether inspection occurs at the fabrication shop (recommended) or on site
Fabrication Techniques
Welding plays a pivotal role in shaping AESS. Skilled welders fuse steel components precisely, creating seamless connections that maintain the material’s aesthetic integrity. The artistry lies in achieving immaculate, strong, durable, and visually seamless welds, ensuring that joints become subtle accents rather than distractions.
Cutting technology has evolved to create complex shapes and profiles. Advanced laser and waterjet cutting techniques enable the fabrication of intricate designs that were once thought impossible. From sinuous curves to intricate patterns, these techniques empower architects to push the boundaries of design.
Bolting is another technique used to join AESS components that requires meticulous attention to detail. The selection of bolts, washers, and nuts not only ensures structural integrity but also contributes to the overall aesthetic.
Photo: David DM
AESS often involves a combination of off-site fabrication and on-site assembly. Prefabrication allows for controlled manufacturing conditions that ensure precise outcomes.
HSS (Hollow Structural Sections) in AESS Applications

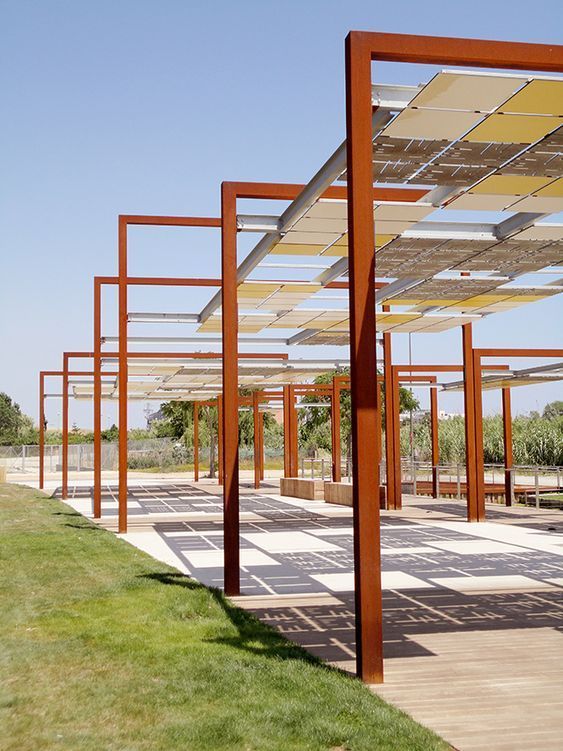

Hollow Structural Sections — round, square, and rectangular steel tubes — are particularly well-suited to AESS applications. Their smooth, continuous surfaces without the sharp edges or visible web/flange junctions of wide-flange sections make them a popular choice for architecturally prominent elements.
Source: Pinterest
Weld Seam Orientation
A critical fabrication consideration for HSS in AESS 3 and above is weld seam orientation. HSS sections are manufactured with a longitudinal weld seam — a visible line running the length of the tube. For architectural applications, fabricators must orient this seam away from the primary line of sight, typically facing a wall, ceiling, or away from the main viewing angle.
This must be explicitly specified in the contract documents. Without clear instruction, fabricators have no obligation to control seam orientation, and the results can be visually inconsistent across a project.
Connections in HSS AESS
Connections in exposed HSS structures require additional care. Bolted connections through HSS members require blind bolt systems or access holes, which must be detailed to be either invisible or to become a deliberate design feature. Welded connections must be finished to the appropriate AESS category — for AESS 3 and 4, this typically means grinding weld toes flush and filling any surface porosity.
Surface Finishes
The finish of AESS profoundly impacts its final appearance and longevity. Choices range from leaving the steel raw, allowing it to weather gracefully, to applying coatings and paints that enhance its durability and aesthetic appeal. These finishes contribute to the material’s narrative, with each choice reflecting the architect’s vision.
Bare Steel Elegance: The raw beauty of bare steel is a popular choice among architects seeking an industrial, unadorned aesthetic. Left untreated, steel develops a natural patina over time, adding a unique character to the structure as it reacts to environmental conditions. This approach embodies a sense of authenticity, showcasing the material’s inherent qualities.
Coatings for Protection: Coatings, such as zinc, epoxy, or galvanized finishes, provide an extra layer of protection against corrosion and weathering. These finishes extend the life of AESS components, particularly in outdoor or coastal environments. Coated steel can also be customized with various colors, allowing architects to harmonize with the building’s palette.
Painted Expressions: Paint offers a versatile canvas for artistic expression. Architects can choose from an extensive color spectrum to complement the building’s design language.
Textured Treatments: Texture adds a tactile dimension to AESS surfaces. Sandblasting, shot peening, or etching techniques create captivating tactile experiences, enhancing the material’s interaction with light and shadow.
Weathering Steel’s Character: Weathering steel, often called “corten steel,” forms a protective rust layer over time, creating a distinctive appearance that evolves with the seasons.
Photo: Karsu İ
Hot-Dip Galvanizing for AESS
Hot-dip galvanizing (HDG) is one of the most effective long-term corrosion protection systems available for structural steel, and it is increasingly specified for AESS in exterior and semi-exposed applications. However, galvanizing introduces unique challenges that standard AESS categories don’t fully address — which is why the AESS C custom category is often used when HDG is specified.
The HDG Surface Challenge
Unlike painted or coated steel where surface preparation is applied after fabrication, galvanizing requires immersion of the entire steel assembly in molten zinc at approximately 450°C. This process reveals surface defects — laps, seams, slivers — that would be invisible under paint, and it can cause warping in thin-section members if not properly designed for.
The resulting surface has a spangled, crystalline appearance that is characteristic of galvanized steel. Some architects embrace this as part of the aesthetic; others require additional surface preparation (such as centrifuging or chemical treatments) to achieve a smoother appearance.
Specifying HDG + AESS
When combining hot-dip galvanizing with AESS requirements, the following must be addressed in the contract:
- Surface preparation standard required before galvanizing (typically Sa 2.5 or equivalent blast cleaning)
- Acceptable surface appearance of the galvanized finish — reference sample panels are strongly recommended
- Whether a duplex system (galvanize + paint) is required for colour or enhanced aesthetics
- Vent hole locations in hollow sections — required for safe galvanizing but must be detailed to minimise visual impact
- Any areas to be masked or kept ungalvanized
The American Galvanizers Association (AGA) publishes guidance specifically for architects on specifying HDG for architectural steel applications, which is a useful reference when developing project specifications.
Maintenance and Longevity: Preserving AESS Beauty
While surface finishes contribute to AESS’s appearance, architects must also consider maintenance requirements. Some finishes may require frequent upkeep to ensure longevity, while others require minimal intervention. Balancing the desired aesthetic with practical maintenance considerations is vital.
Routine Inspection: Regular inspections are essential to catch any signs of wear, corrosion, or damage early on. Inspectors assess the condition of AESS components, identifying potential issues that might compromise structural integrity or aesthetics.
Cleaning Strategies: Cleaning protocols vary based on the chosen surface finish. For bare steel, periodic cleaning and rust prevention measures might be necessary. Coated or painted AESS requires careful cleaning to maintain its appearance and protective qualities.
Corrosion Prevention: Corrosion is a common concern with exposed steel. Coatings and finishes play a crucial role in preventing corrosion, but regular monitoring and maintenance are equally important to catch and address corrosion spots before they escalate.
Finishes Refresh: Depending on the chosen finish, periodic refinishing might be required to maintain the desired appearance. This might involve repainting, recoating, or reapplying protective finishes to ensure both aesthetic appeal and protection.
Weather Considerations: AESS exposed to different climatic conditions might require tailored maintenance approaches. For instance, structures in coastal areas might need more rigorous maintenance due to the corrosive effects of saltwater and air.
Listing courtesy of Ilana Gafni & Crosby Doe | Crosby Doe & Associates
Conclusion: Steel as Artistry
As we reflect on the significance of AESS, we’re reminded that every exposed steel beam, every precisely welded joint, and every carefully chosen finish embodies the dedication and imagination of countless individuals. AESS structures are not just feats of construction; they’re tangible testaments to human ingenuity.
In a world where architecture seeks to inspire and captivate, Architecturally Exposed Structural Steel stands as a living testament to the potent synergy of imagination and innovation. It’s a reminder that even in the realm of steel and concrete, we find the capacity to create structures that touch the very essence of what it means to be human.
